Q-BRID LITE
• 1080P Full HD Realtime Live.
• 1080P 15fps Recording.
• Auto detection HD-SDI & 960H.
• IP Hybrid in DVR. (IPC 1 ~ 4 units
connected based on DVR model)
• Supported HD SPOT. (08/16 channel)
• Individual channel setting.
• Friendly user OSD GUI.
• Powerful CMS with Remote setup.
• EYEON Mobile APP (For iPhone, Android)
• Storage – 2 SATA (Compact)
Specifications
| Model |
QL04 |
QL08 |
QL16 |
| Video |
Camera input |
4 BNC |
8 BNC |
16 BNC |
| Individual HD/Analog selectable |
All Hybrid(Auto Detection) |
| Available source |
720p25,30,50,60/1080p25,30/1080i50,60/Composite/960H/Mixed |
| IP Camera |
Spec |
ONVIF 2.3, RTSP, H.264, dual stream use gigabit ethnet hub |
| Num |
1 unit |
2 units |
4 units |
| Restriction |
Cannot display SPOT
Cannot setup Private ZONE
Cannot attach email image
Cannot snapshot live image
Cannot support Timestamp |
Cannot display HD SPOT, SPOT
Cannot setup Private ZONE
Cannot attach email image
Cannot snapshot live image
Cannot support Timestamp |
| Output |
1 HDMI (Main Display)
1 VGA (Main Display)
1 Composite (Programmable SPOT) |
1 HDMI (Main Display or Programmable HD Spot)
1 VGA (Main Display or Programmable HD Spot)
1 Composite (Programmable SPOT) |
| Audio |
Audio input |
4 RCA |
| Output |
1 RCA |
| Sensor In |
4 (NC, NO selectable) |
| Alarm out |
1 relay |
| Operating System |
Embedded Linux OS |
| Display |
Speed |
Real Time |
| Resolution (Pixel) |
1280X1024, 1280X720, 1920X1080 |
| Split screen |
1,4 |
1,4,6,8,9 |
1,4,6,8,9,13,16 |
Main
Recording |
CODEC |
H.264 |
| Resolution (Pixel) |
1080P (1080p25,30/1080i50,60), 720P (720p25,30,50,60), WD1, D1 (Composite, 960H) |
| Picture quality |
4 steps (Super, High, Medium, Low) |
| Speed |
NTSC area
PAL area |
120fps@720p/ 50fps@1080p
100fps@720p/ 50fps@1080p |
240fps@720p/ 120fps@1080p
200fps@720p/ 100fps@1080p |
480fps@720p/ 240fps@1080p
400fps@720p/ 200fps@1080p |
| Playback |
Display |
1,4 |
1,4,6,8,9 |
1,4,6,8,9,13,16 |
| Search mode |
Calendar, Event ,POS , Panorama, Thumbnail |
| Speed |
NTSC area
PAL area |
30fps@1080p
25fps@1080p |
60fps@1080p
50fps@1080p |
120fps@1080p
100fps@1080p |
| Fast/Slow speed |
Normal, REW & FF [recorded speed x2, x4, x8, x16,x32,x64,x1/2,x1/4], Frame to frame, Pause |
| Network |
Network Interface |
Gigabit Ethernet |
| High Resolution (Pixel) |
720p, 960x540(1080p25,30), 720p, 960x540 (720p25,30), 960H, D1 (Composite, 960H) |
| Low Resolution (Pixel) |
480x256 (1080p25,30), 480x256 (720p25,30), CIF (Composite, 960H) |
| Speed |
NTSC area
PAL area |
20fps@720p
20fps@720p |
40fps@720p
40fps@720p |
100fps@720p
100fps@720p |
| Protocol |
TCP/IP, HTTP, DHCP |
| Application |
Windows 7 / 8 (PC Client system& IE)/MAC |
| Web Browser |
Internet Explorer, Safari, Chrome, Firefox |
| Smart phone App |
Android, iPhone for live and search |
| Backup |
Interface |
USB 2.0 X 2 |
| Backup device |
External HDD, CD&DVD-RW, Network, Thumb Drive |
| The number of HDD |
2 SATA(No capacity limit ; 4TB of more) |

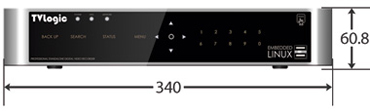

Dimensions (Unit:mm)
Size : 340 x 60.8 x 261
|
| |
|
| |
|
| |
|
|
|
|
